Supreme International 24 Foot Pull-Type Delivery Box

Double tap to zoom

Delivery Box

24 Foot Pull-Type Delivery Box

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 24′ Pull-Type Delivery Box has a struck capacity of 1,108 ft³ (31.4 m³) or 1,252 ft³ (35.5 m³) with extension, and requires 180 horse power (224 kW).

Unlike any other delivery system on the market, the Supreme International Delivery Box has a revolutionary AUTO FEED FLOOR DRIVE that simplifies feeding on a new level.

With a pressure sensing floor that automatically moves based on ration type, the operator no longer has to control the floor speed. This is one less step that the feeder has to accommodate for, and instead only has to focus on opening the discharge door and controlling conveyor speed.

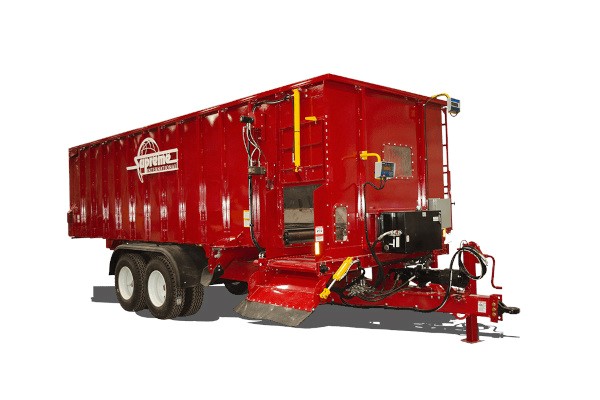

The End Dump option is shown in the model picture and the drawing below.

Specifications

Minimum Power Requirements: 180 hp / 134 kW
Unit Capacity: Struck Capacity: 1,108 ft³ / 31.4 m³, Capacity with Extension: 1,252 ft³ / 35.5 m³
Tires: Tandem Axle Walking Beam with (8) 11R22.5 Tires
Empty Weight: N/A
Max Payload: 40,000 lbs / 18,144 kg
Dimensions: Height: 131” / 333 cm Height w/ 12” Steel Extension: 143” / 363 cm Overall Width: 122” / 310 cm Overall Length : 368” / 935 cm
Drive / rpm PTO: 1,000
Standard Discharge Ground Clearance: 23” / 58 cm
Number of Knives : N/A
Conveyor: 9’ Flat Discharge Conveyor with Hydraulic Folding Dropchute
Floor Thickness: 10 GA / 3.4 mm Stainless Steel Floor
Wall Thickness: 12GA w/ 12’’ Lower Side Wall Liner

Standards Specifications: 10 GA / 3.4 mm Stainless Steel Floor w/ 12’’ Lower Side Wall Liner, Easy Access Back End, ”Auto Feed Floor Drive” Selectable System for Each Separate Ration, 4-point Scale System, 2 Viewing Windows, Hydraulic Floor Chain Tensioner, Fixed End, Removable Heavy-Duty Hitch Jack, Multi Function Controls, 5.7” High Resolution LCD Display, SS Conveyor Top Pan, Folding Ladder, Clean-out Auger, 1,000 RPM PTO, 12V Battery, Articulating Hitch
