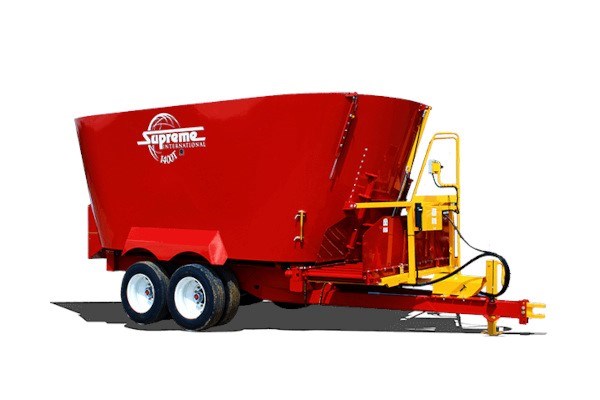

Supreme International 1400T Pull-Type Tandem Axle

Double tap to zoom

Pull Type Mixers

1400T Pull-Type Tandem Axle

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 1400T Pull-Type has a maximum payload of 40,000 lbs (18,144 kg), struck capacity of 1,152 ft³ (32.6 m³) or 1,305 ft³ (37.0 m³) with tub extension, and requires 230 horse power (172 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or counter-shafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 1400T is also available as a truck mount and a stationary mixer.

Specifications

Minimum Power Requirements: 230 hp / 172 kW
Unit Capacity: Struck Capacity: 1,152 ft³ / 32.6 m³
Capacity with Extension: 1,305 ft³ / 37.0 m³
Tires: 275/70R 22.5 Truck Tires with Budd Wheels and HD Axle
Empty Weight: 27,316 lbs / 12,390 kg
Max Payload: 40,000 lbs / 18,144 kg
Dimensions: Height: 130" / 330 cm
Height w/ 10" Extension: 140" / 356 cm
Overall Width: 121" / 307 cm
Overall Length : 328" / 833 cm
Drive / rpm PTO: Two Heavy-Duty, Two-Stage Planetary Drives / 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 37" / 94 cm
Dogleg: 50" / 127 cm
Ext. Dogleg: 62" / 157 cm
42" Folding: 60" / 152 cm
54" Folding: 67" / 170 cm
Side Door Fixed Chute: 28" / 71 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 10’ Flat Conveyor
Floor Thickness: 1” (25mm) M/S Floor
Wall Thickness: 1/4” (6mm) AR200 Walls

Standards Specifications:

Patented Freestanding Vertical Mixing Auger
Manual Restrictor Plates
Heavy-Duty Tubular Steel Frame
5/8” / 16 mm AR200 Auger Flighting
Removable Heavy Duty Hitch Jack
4 pt Scale System
12 Volt Battery
Ultra Wear Kickerplate
SS Conveyor Top Pan on Conveyor Models
Independent Steel Oil Reservoirs
Viewing Platform
