Supreme International 1700TR Pull-Type

Double tap to zoom

Pull Type Mixers

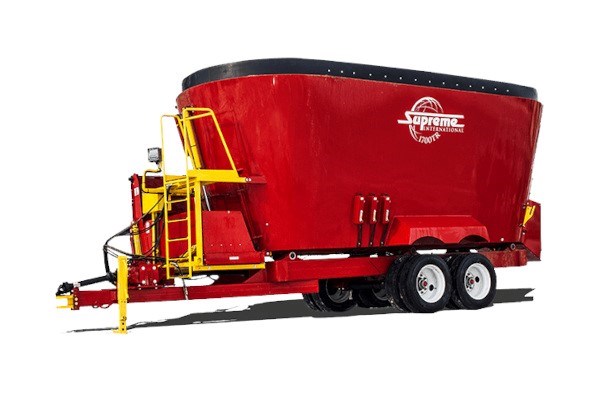

1700TR Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 1700TR Pull-Type has a maximum payload of 50,000 lbs (22,680 kg), struck capacity of 1,392 ft³ (39.4 m³) or 1,566 ft³ (44.3 m³) with tub extension, and requires 200 horse power (149 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or counter-shafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 1700TR is also available as a stationary.

Specifications

Minimum Power Requirements: 200 hp / 149 kW
Unit Capacity: Struck Capacity: 1,392 ft³ / 39.4 m³, Capacity with Extension: 1,566 ft³ / 44.3 m³
Tires: 275/70R 22.5 Truck Tires with Budd Wheels and HD Axle
Empty Weight: 33,837 lbs / 15,348 kg
Max Payload: 50,000 lbs / 22,680 kg
Dimensions: Height: 143" / 363 cm, Height w/ 10" Extension: 153" / 389 cm, Overall Width: 126" / 320 cm, Overall Length : 358" / 909 cm
Drive / rpm PTO: (3) 2 Stage HD Planetary Drives / 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 38" / 97 cm, Dogleg: 52" / 132 cm, Ext. Dogleg: 63" / 160 cm, 42" Folding: 61" / 155 cm, 54" Folding: 68" / 173 cm, Side Door Fixed Chute: 29" / 74 cm
Number of Knives : (15) Replaceable Forage Cutting Blades
Conveyor: Front Center Door with 10’ Flat Conveyor
Floor Thickness: 1” / 25 mm M/S Floor
Wall Thickness: 5/16” / 8 mm AR200 Walls

Standards Specifications: Three Patented Freestanding Vertical Cutting Augers, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 6 pt Scale System, Articulating Hitch, Stainless Steel Auger Outer Edge, Independent Steel Oil Reservoirs, Viewing Platform
