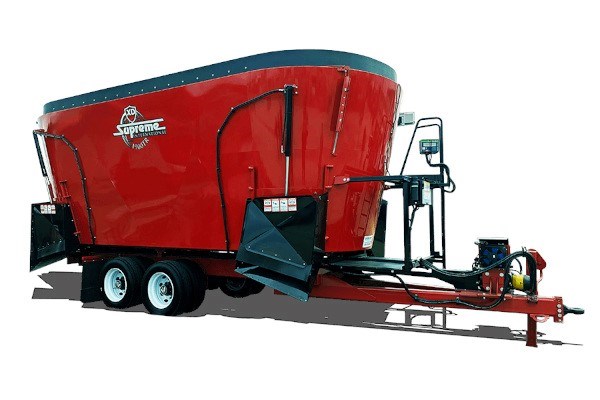

Supreme International 1900TR Tandem Axle Pull-Type

Double tap to zoom

Pull Type Mixers

1900TR Tandem Axle Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 1900TR Tandem Pull-Type has a maximum payload of 60,000 lbs (27,216 kg), struck capacity of 1,674 ft³ (47.4 m³) or 1,873 ft³ (53.0 m³) with tub extension, and requires 250 horse power (186 kW).

With a two-speed autoshift transmission, and walking beam tandem axle undercarriage, this processor is ready to get the job done. Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or counter-shafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

Specifications

Minimum Power Requirements: 250 hp / 186 kW
Unit Capacity: Struck Capacity: 1,674 ft³ / 47.4 m³, Capacity with Extension: 1,873 ft³ / 53.0 m³
Tires: 275/70R 22.5 Truck Tires on walking beam tandem axle
Empty Weight: N/A
Max Payload: 60,000 lbs / 27,216 kg
Dimensions: Height: 146” / 371 cm, Height w/ 10” Extension: 156” / 396 cm, Overall Width: 130” / 330 cm, Overall Length : 400” / 1,016 cm
Drive / rpm PTO: (3) 2 Stage HD Planetary Drives / 1000 rpm PTO / Autoshift Transmission
Standard Discharge Ground Clearance: Flat: 37” / 94 cm, Dogleg: 51” / 130 cm, Ext. Dogleg: 62” / 157 cm, 42” Folding: 60” / 152 cm, 54” Folding: 67” / 170 cm, Side Door Chute: 15” / 38 cm
Number of Knives : (15) Replaceable Forage Cutting Blades
Conveyor: Front Center Door with 10’ Flat Conveyor
Floor Thickness: 1” / 25 mm M/S Floor
Wall Thickness: 5/16” / 8 mm AR200 Walls
Standards Specifications: Three Patented Freestanding Vertical Cutting Augers, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 6 pt Scale System, Articulating Hitch, Stainless Steel Auger Outer Edge, Independent Steel Oil Reservoirs, Viewing Platform, Two-Speed Autoshift Transmission
