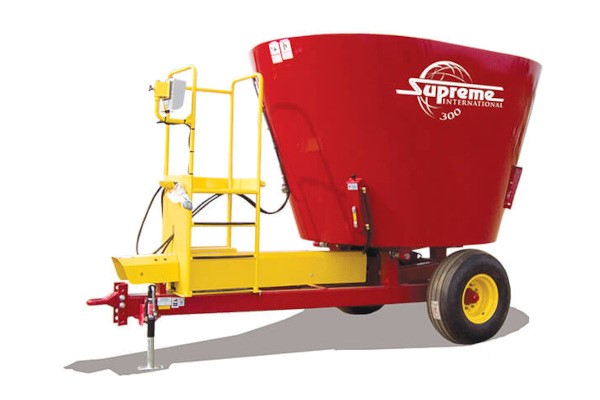

Supreme International 300 Pull-Type

Double tap to zoom

Pull Type Mixers

300 Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 300 Pull-Type has a maximum payload of 6,000 lbs (2,722 kg), struck capacity of 231 ft³ (6.5 m³) or 275 ft³ (7.8 m³) with tub extension, and requires 50 horse power (37 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 300 is also available as a stationary mixer.

Specifications

Minimum Power Requirements: 50 hp / 37 kW
Unit Capacity: Struck Capacity: 231 ft³ / 6.5 m³
Capacity with Extension: 275 ft³ / 7.8 m³
Tires: 12.5L-15, 12 Ply Rated Hwy
Empty Weight: 5,700 lbs / 2,585 kg
Max Payload: 6,000 lbs / 2,722 kg
Dimensions: Height: 98" / 249 cm
Height w/ 10" Extension: 108" / 274 cm
Overall Width: 96" / 244 cm
Overall Length : 170" / 432 cm
Drive / rpm PTO: 2-Stage Heavy-Duty Planetary Drive / 540 rpm PTO
Standard Discharge Ground Clearance: Fixed Chute: 25" / 64 cm
21" Fixed: 34" / 86 cm
36" Folding: 41" / 104 cm
44" Folding: 44" / 112 cm
Number of Knives : 4 Replaceable Forage Cutting Blades
Conveyor: Left or Right Hand Side Door with Drop Chute
Floor Thickness: 5/8" / 16 mm M/S Floor
Wall Thickness: 1/4” / 6 mm AR200 Walls

Standards Specifications:

Patented Freestanding Vertical Mixing Auger
Manual Restrictor Plates
Heavy-Duty Tubular Steel Frame
5/8” / 16 mm AR200 Auger Flighting
Left or Right hand side door with Drop chute
3 pt Scale System
12 Volt Battery
Ultra Wear Kickerplate
SS Conveyor Top Pan on Conveyor Models
Steel Oil Reservoir
Removable Hitch Jack
Viewing Platform
