Supreme International 500T Pull-Type

Double tap to zoom

Pull Type Mixers

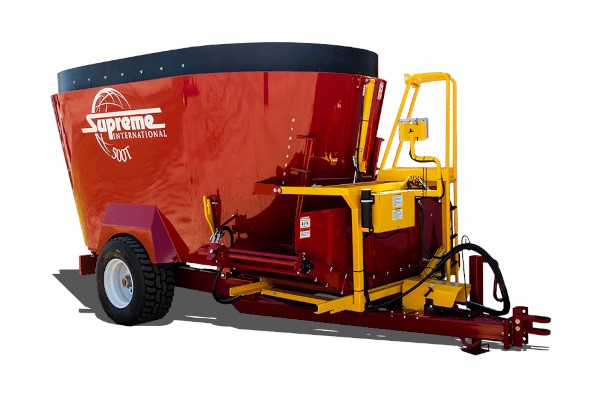

500T Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 500T Pull-Type has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 479 ft³ (13.6 m³) or 555 ft³ (15.7 m³) with tub extension, and requires 80 horse power (60 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 500T is also available as a truck mount and a stationary mixer.

Specifications

Minimum Power Requirements: 80 hp / 60 kW
Unit Capacity: Struck Capacity: 479 ft³ / 13.6 m³
Capacity with Extension: 555 ft³ / 15.7 m³
Tires: (2) 435/50R19.5
Empty Weight: 11,950 lbs / 5,420 kg
Max Payload: 14,000 lbs / 6,350 kg
Dimensions: Height: 100" / 254 cm
Height w/ 10" Extension: 110" / 279 cm
Overall Width: 99" / 251 cm
Overall Length : 241" / 612 cm
Drive / rpm PTO: (2) Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 22" / 56 cm
Dogleg: 35" / 89 cm
Ext. Dogleg: 46" / 117 cm
42" Folding: 39" / 99 cm
54" Folding: 44" / 112 cm
Number of Knives : (8) Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 8’ Flat Conveyor
Floor Thickness: 3/4” / 19 mm M/S Floor
Wall Thickness: 1/4” / 6 mm AR200 Walls

Standards Specifications:

Two Patented Freestanding Vertical Cutting Augers
Manual Restrictor Plates
Heavy-Duty Tubular Steel Frame
5/8” / 16 mm AR200 Auger Flighting
Ultra Wear Kicker Plates
4 pt Scale System
12 Volt Battery
SS Conveyor Top Pan
Removable Heavy Duty Hitch Jack
Independent Steel Oil Reservoirs
Viewing Platform
