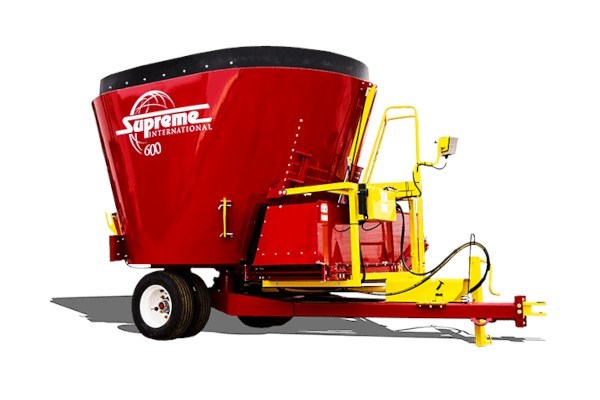

Supreme International 600 Pull-Type

Double tap to zoom

Pull Type Mixers

600 Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 600 Pull-Type has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 465 ft³ (13.2 m³) or 534 ft³ (15.1 m³) with tub extension, and requires 100 horsepower (75 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 600 is also available as a stationary mixer.

Specifications

Minimum Power Requirements: 100 hp / 75 kW
Unit Capacity: Struck Capacity: 465 ft³ / 13.2 m³, Capacity with Extension: 534 ft³ / 15.1 m³
Tires: 235 x 75 x 17.5 Tires
Empty Weight: 9,700 lbs / 4,400 kg
Max Payload: 14,000 lbs / 6,350 kg
Dimensions: Height: 115" / 292 cm, Height w/ 10" Extension: 125" / 318 cm, Overall Width: 103" / 262 cm, Overall Length : 224" / 569 cm
Drive / rpm PTO: 2-Stage Heavy-Duty Planetary Drive / 540 or 1,000 rpm PTO
Standard Discharge Ground Clearance: SIDE DOOR: Fixed Chute: 26" / 66 cm, 21" Fixed: 36" / 91 cm, 36" Folding; 42" / 107 cm, 44" Folding: 46" / 117 cm, 96" Folding: 68" / 173 cm, FRONT DOOR w/ CONVEYOR: Flat: 27" / 69 cm, Dogleg: 40" / 102 cm, Ext. Dogleg: 51" / 130 cm, 42" Folding: 44" / 112 cm, 54" Folding: 49" / 124 cm
Number of Knives : 5 Replaceable Forage Cutting Blades
Conveyor: Left or Right Hand Side Door with Drop Chute
Floor Thickness: 5/8" / 16 mm M/S Floor
Wall Thickness: 1/4” / 6 mm AR200 Walls

Standards Specifications: Patented Freestanding Vertical Mixing Auger, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, 3 pt Scale System, 12 Volt Battery, Ultra Wear Kickerplate, SS Conveyor Top Pan on Conveyor Models, Steel Oil Reservoir, Removable Heavy-Duty Hitch Jack, Viewing Platform
