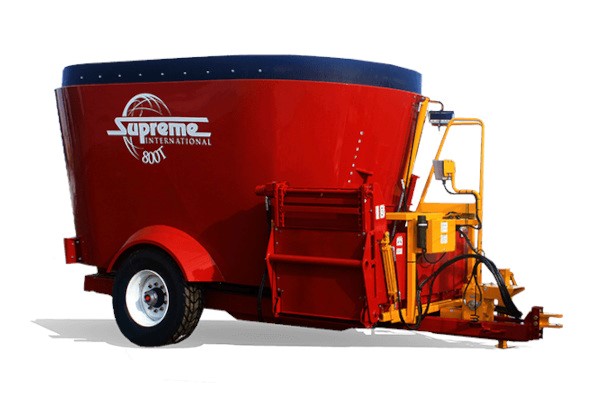

Supreme International 800T Pull-Type

Double tap to zoom

Pull Type Mixers

800T Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 800T Pull-Type has a maximum payload of 18,000 lbs (8,165 kg), struck capacity of 650 ft³ (18.4 m³) or 745 ft³ (21.1 m³) with tub extension, and requires 115 horse power (86 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy-duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

This unit comes standard with a 2 speed gearbox to reduce the power required to run it.

Specifications

Minimum Power Requirements: 115 hp / 86 kW
Unit Capacity: Struck Capacity: 650 ft³ / 18.4 m³, Capacity with Extension: 745 ft³ / 21.1 m³
Tires: 385x65R-22.5 Tires
Empty Weight: 14,515 lbs / 6,584 kg
Max Payload: 18,000 lbs / 8,165 kg
Dimensions: Height: 111" / 282 cm, Height w/ 10" Extension: 121" / 307 cm, Overall Width: 110" / 279 cm, Overall Length : 257" / 653 cm
Drive / rpm PTO: (2) Heavy-Duty, Two-Stage Planetary Drives / 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 24" / 61 cm, Dogleg: 37" / 94 cm, Ext. Dogleg: 48" / 122 cm, 42" Folding: 36" / 91 cm, 54" Folding: 41" / 104 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 8’ Flat Conveyor
Floor Thickness: 3/4” (19 mm) M/S Floor
Wall Thickness: 1/4” (6 mm) AR200 Walls

Standards Specifications: Two Patented Freestanding Vertical Mixing Auger, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 4pt Scale System, 12 Volt Battery, SS Conveyor Top Pan, Independent Steel Oil Reservoirs, Viewing Platform
