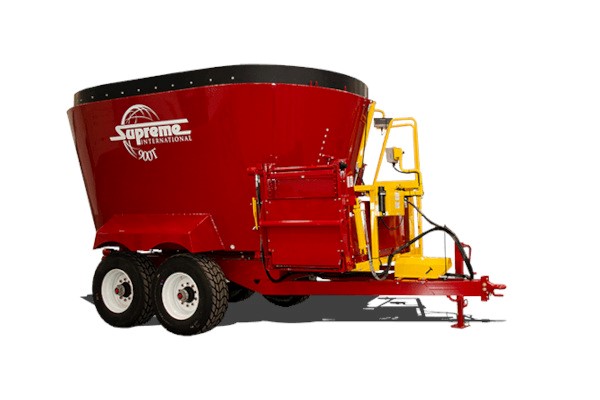

Supreme International 900T Pull-Type Tandem Axle

Double tap to zoom

Pull Type Mixers

900T Pull-Type Tandem Axle

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The 900T Pull-Type Tandem Axle has a maximum payload of 24,000 lbs (10,886 kg), struck capacity of 731 ft³ (20.7 m³) or 841 ft³ (23.8 m³) with tub extension, and requires 130 horse power (97 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 900T is also available as a truck mount and a stationary mixer.

Specifications

Minimum Power Requirements: 130hp / 97kW
Unit Capacity: Struck Capacity: 731 ft³ / 20.7 m³, Capacity with Extension: 841 ft³ / 23.8 m³
Tires: 275/70R 22.5 Truck Tires with Budd Wheels and HD Axle
Empty Weight: 18,524 lbs / 8,402 kg
Max Payload: 24,000 lbs / 10,886 kg
Dimensions: Height: 122" / 310 cm, Height w/ 10" Extension: 132" / 335 cm, Overall Width: 121" / 307 cm, Overall Length : 273" / 693 cm
Drive / rpm PTO: Two Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 36" / 91 cm, Dogleg; 49" / 124 cm, Ext. Dogleg: 60" / 152 cm, 42" Folding: 58" / 147 cm, 54" Folding: 65" / 165 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 10’ Flat Conveyor
Floor Thickness: 3/4” (19 mm) M/S Floor
Wall Thickness: 1/4” (6 mm) AR200 Walls

Standards Specifications: Tandem Axle, Two Patented Freestanding Vertical Mixing Augers, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 4pt Scale System, 12 Volt Battery, SS Conveyor Top Pan, Independent Steel Oil Reservoirs, Viewing Platform
