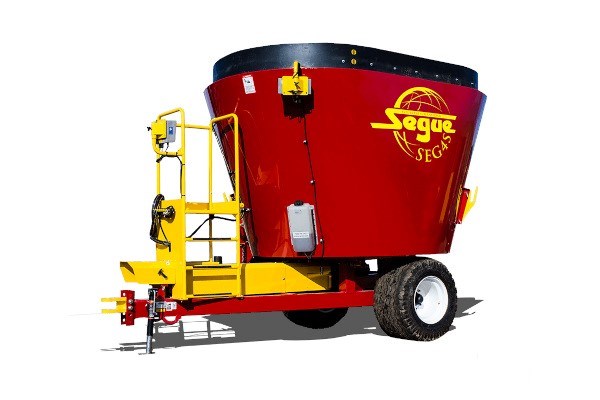

Segue 4S Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The Segue 4S Pull-Type has a maximum payload of 10,000 lbs (4,536 kg), struck capacity of 320 ft³ (9.1 m³) or 378 ft³ (10.7 m³) with tub extension, and requires 60 horse power (45 kW).

The Segue line is built by Supreme in our Alberta factory with the same expectations for quality and performance. With standard options like a 44W steel tub, roller chain conveyor with stainless steel top pan, twin oil reservoirs, and a DG or Digi-Star scale system, you get all the features you need to maximize your operation’s feeding performance. You won’t believe the value and performance of the Segue line – ask your local Supreme dealer today.

Specifications

Minimum Power Requirements: 60 hp / 45 kW
Unit Capacity: Struck Capacity: 320 ft³ / 9.1 m³, Capacity with Extension: 378 ft³ / 10.7 m³
Tires: 19x45x17 Implement Tires
Empty Weight: 6,286 lbs / 2,851 kg
Max Payload: 10,000 lbs / 4,536 kg
Dimensions: Height: 102” / 259 cm, Height w/ 10” Extension: 112” / 284 cm, Overall Width: 109” / 277 cm, Overall Length : 177” / 450 cm
Drive / rpm PTO: 540 rpm PTO Heavy-Duty, Two-Stage Planetary Drive
Standard Discharge Ground Clearance: Fixed Chute: 26” / 66 cm, 21” Fixed: 35” / 89 cm, 36” Folding: 41” / 104 cm, 44” Folding: 45” / 114 cm
Number of Knives : 4 Replaceable Forage Cutting Blades
Conveyor: Left or Right Side Door w/ Drop Chute
Floor Thickness: 5/8” M/S Floor
Wall Thickness: 1/4” M/S Walls

Standards Specifications: One Patented Freestanding Vertical Cutting Auger, Manual Restrictor Plates, Viewing Platform, Scale System, Oil Reservoir, 5/8” AR200 Auger Flighting, Removable Hitch Jack, PPI301-V3 Hitch
