Features

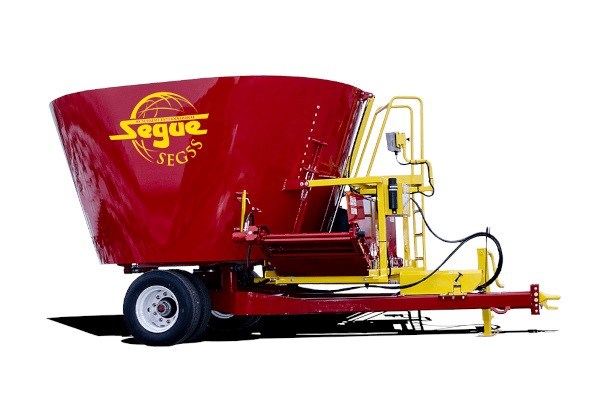

The Segue 5S Pull-Type has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 394 ft³ (11.2 m³) or 459 ft³ (13.0 m³) with tub extension, and requires 100 horse power (75 kW).

The Segue line is built by Supreme in our Alberta factory with the same expectations for quality and performance. With standard options like a 44W steel tub, roller chain conveyor with stainless steel top pan, twin oil reservoirs, and a DG or Digi-Star scale system, you get all the features you need to maximize your operation’s feeding performance. You won’t believe the value and performance of the Segue line – ask your local Supreme dealer today.

Specifications

Minimum Power Requirements: 100 hp / 75 kW
Unit Capacity: Struck Capacity: 394 ft³ / 11.2 m³, Capacity with Extension: 459 ft³ / 13.0 m³
Tires: 235x75x17.5 Tires
Empty Weight: 8,656 lbs / 3,926 kg
Max Payload: 14,000 lbs / 6,350 kg
Dimensions: Height: 105” / 267 cm, Height w/ 10” Extension: 115” / 292 cm, Overall Width: 103” / 262 cm, Overall Length : 221” / 561 cm
Drive / rpm PTO: 540 rpm PTO & Heavy-Duty, Two-Stage Planetary Drive
Standard Discharge Ground Clearance: Flat: 27” / 69 cm, Dogleg: 40” / 102 cm, Ext. Dogleg: 51” / 130 cm
Number of Knives : 5 Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 8’ Flat Conveyor
Floor Thickness: 5/8” M/S Floor
Wall Thickness: 1/4” M/S Walls

Standards Specifications: One Patented Freestanding Vertical Cutting Auger, Manual Restrictor Plates, Viewing Platform, Scale System, Oil Reservoir, 5/8” AR200 Auger Flighting, Removable Heavy-Duty Hitch Jack, PPI301-V3 Hitch
