Supreme International Segue 5T Pull-Type

Double tap to zoom

Pull-Type

Segue 5T Pull-Type

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

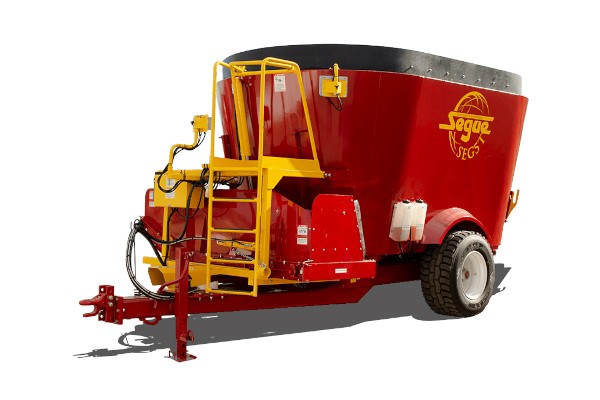

The Segue 5T Pull-Type has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 479 ft³ (13.6 m³) or 555 ft³ (15.7 m³) with tub extension, and requires 80 horse power (60 kW).

The Segue line is built by Supreme in our Alberta factory with the same expectations for quality and performance. With standard options like a 44W steel tub, roller chain conveyor with stainless steel top pan, twin oil reservoirs, and a DG or Digi-Star scale system, you get all the features you need to maximize your operation’s feeding performance. You won’t believe the value and performance of the Segue line – ask your local Supreme dealer today.

Specifications

Minimum Power Requirements: 80 hp / 60 kW
Unit Capacity: Struck Capacity: 479 ft³ / 13.6 m³, Capacity with Extension: 555 ft.³ / 15.7 m³
Tires: (2) 435/50R19.5
Empty Weight: 9,799 lbs / 4,445 kg
Max Payload: 14,000 lbs / 6,350 kg
Dimensions: Height: 100” / 254 cm, Height w/ 10” Extension: 110” / 279 cm, Overall Width: 99” / 251 cm, Overall Length : 241” / 612 cm
Drive / rpm PTO: 540 rpm PTO & (2) Heavy-Duty, Two-Stage Planetary Drives
Standard Discharge Ground Clearance: Flat: 22” / 56 cm, Dogleg: 35” / 89 cm, Ext. Dogleg: 46” / 117 cm
Number of Knives : 8 Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 8’ Flat Conveyor
Floor Thickness: 5/8” M/S Floor
Wall Thickness: 1/4” M/S Walls

Standards Specifications: Two Patented Freestanding Vertical Cutting Augers, Manual Restrictor Plates, Viewing Platform, Scale System, Independent Oil Reservoirs, 5/8” AR200 Auger Flighting, Removable Heavy-Duty Hitch Jack, PPI301-V3 Hitch
