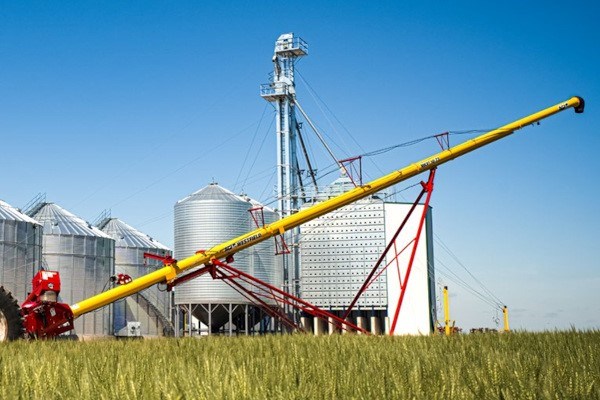

Westfield MKX2 10-53

Double tap to zoom

MKX2 10

MKX2 10-53

Overview:

10” Diameter
53’ – 83’ Lengths
Up to 6,000 bph
Available in both Scissor lift and a-frame

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

KEY FEATURES

New open discharge spout decreases horsepower requirements
Aircraft cable trussing
Stable A-frame support (53'-83')
Wide standing axles

OPTIONS

Hydraulic hopper winch
Electric and hydraulic power swing
Reverser kit
Corn screen
Poly flex spout
Right angle drive
LED work lights

Specifications

MODEL	MKX2 10-53
TUBE GAUGE	12 ga
TUBE CONNECTORS	Heavy-duty 3/16" (0.5 cm) angle flange
MAIN FLIGHTING	9" (22.9 cm) OD x 7 ga stretched and welded with Wear Edge Technology^TM on critical points
WEAR EDGE TECHNOLOGYTM (REINFORCED FLIGHT)	1/4" (0.6 cm) plus 10 ga ribbon weld = 5/16" (0.8 cm) Wear Edge TechnologyTM on critical grain transfer points
FLIGHTING SHAFT	High strength 2" (5.1 cm) OD x 11 ga tubing square flight connection
UPPER BEARING	2" (5.1 cm) taper roller bearing assembly
LOWER BEARING	1 1/2" (3.8 cm) pillow block greaseable ball bearing
TUBE TRUSSING	5/16" (0.8 cm) aircraft type galvanized steel cable
HYDRAULIC LIFT	Single 4" (10.2 cm) cylinder with 5/16" (0.8 cm) aircraft cable
UNDERCARRIAGE	3" (7.6 cm) x 11 ga A-frame
AXLE	2 1/2" (6.4 cm) x 2 1/2" (6.4 cm) x 1/8" (0.3 cm) wall square tubing
HUB	4-bolt agricultural type
TIRES	15" (38.1 cm)
PTO SHAFT	14E constant velocity with 5/16" (8 mm) shear bolt
PARKING JACK	2000 lbs (907.2 kg) side wind
SPROCKET & CHAIN	Hardened tooth sprocket with #60 chain
LOW PROFILE HOPPER DIMENSIONS	60" (152.4 cm) length x 40" (101.6 cm) width x 10" (25.4 cm) height with flat free tires
PSI REQUIRED TO RAISE AUGER	1000 psi (68.9 bar)
HP REQUIRED (WITH DRY WHEAT)	45-50 hp
WHEEL TREAD	106" (2.7 m)
TRANSPORT HEIGHT (18" HITCH)	12' 6" (3.8 m)
