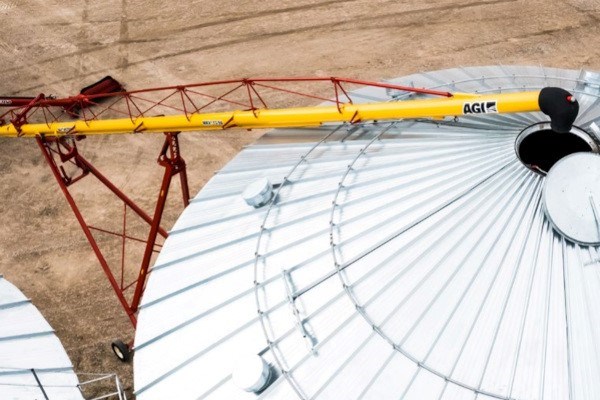

Westfield MKX2 13-74

Double tap to zoom

MKX2 13

MKX2 13-74

Overview:

13” Diameter
64’ – 114’ Lengths
to 11,000 bph
Available in both Scissor lift and a-frame

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

FEATURES

New open discharge spout decreases horsepower requirements
Aircraft cable trussing
Stable A-frame support (64'-114')
Wide standing axles
Rigid steel trussing (84' and up)
Strong scissor-lift frame (74' 114')

Options

Steerable axles
Hydraulic hoper winch
Electric and hydraulic power swing
X-Tend hopper
X-Over hopper
Poly flex spout
Speed reducer-reverser
Reverser kit
Corn screen
Right angle drive
Transport lights
LED work lights

Specifications

A-Frame Model	MKX2 13-74
TUBE GAUGE	12 ga
TUBE CONNECTORS	Heavy-duty ¼" (0.6 cm) angle flange
MAIN FLIGHTING	11 3/4" (29.8 cm) OD x 1/4" (0.6 cm) stretched and welded with Wear Edge TechnologyTM on critical points
WEAR EDGE TECHNOLOGYTM (REINFORCED FLIGHT)	1/4" (0.6 cm) plus 10 ga ribbon weld = 5/16" (0.8 cm) Wear Edge TechnologyTM on critical grain transfer points
AR BOOT FLIGHT	1/4" (0.6 cm)
FLIGHTING SHAFT	High strength 3" (7.6 cm) OD x 11 ga tubing square flight connection
UPPER BEARING	2" (5.1 cm) taper roller bearing assembly
GREASELESS HANGER BEARING FOR BOOT (NEW)	1 15/16" (4.9 cm) ID, triple seal
LOWER BEARING	Custom 2" (5.1 cm) taper roller bearing assembly
TUBE TRUSSING	3/8" (1 cm) aircraft type galvanized steel cable
HYDRAULIC LIFT	Dual 4" (10.2 cm) single acting cylinders with 5/16" (0.8 cm) aircraft cable
UNDERCARRIAGE	4" (10.2 cm) x 11 ga A-frame
AXLE	3" (7.6 cm) x 3" (7.6 cm) square tubing
HUB	6-Bolt agricultural type
TIRES	16' (40.6 cm) TRF
PTO SHAFT	35E constant velocity with 3 /8" (1 cm) shear bolt
PARKING JACK	5000 lbs (2268 kg) side wind
SPROCKET & CHAIN	Hardened tooth sprocket with HD #80 chain
LOW PROFILE HOPPER DIMENSIONS	60" (152.4 cm) length x 40" (101.6 cm) width x 10" (25.4 cm) height with flat free tires
PSI REQUIRED TO RAISE AUGER	1600 psi (110.3 bar)
HP REQUIRED (WITH DRY WHEAT)	110-125 hp
WHEEL TREAD	130" (330.2 cm)
TRANSPORT HEIGHT (18" HITCH)	14' 3" (4.3 m)
