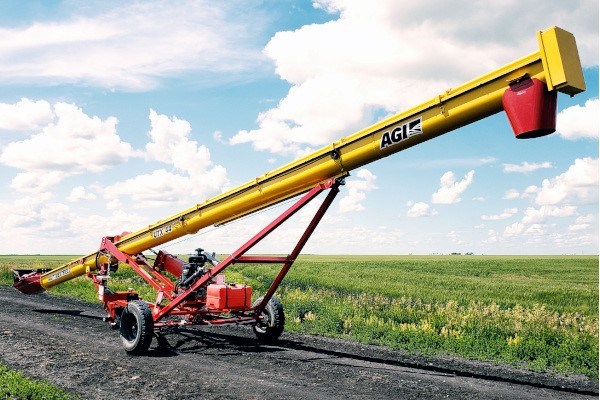

UTX U-Trough Auger

UTX

PRINT

Overview:

AGI is dedicated to bringing the highest level of manufacturing quality and expertise to the agriculture industry. As part of this commitment to innovation, AGI is proud to feature the UTX U-Trough Auger.
Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

Powder Coat Paint
Powder coat paint to protect against and repel rust

Steel Hydraulic Lines
Steel hydraulic lines with ORB fittings have been added to the new Self-Propelled Mover Kit to reduce the chance of leakage

Triple Banded Belts
All UTX models come standard with triple banded belts to better maintain speed, by providing improved tension with less slippage

Square Flighting Connections
Square one-bolt flight connections to provide positive torque transfer

Wear Edge Technology™
Wear Edge Technology™ to extend the life of the flighting

Driveline Guard
Completely enclosed driveline guard to provide a cleaner, sleeker look while protecting your auger from the elements

Hydraulic Winch
Hydraulic winch to raise and lower the auger with ease and precision

Chain Tensioner
Adjustable chain tensioner to help maintain consistent chain drive tension. The top drive comes sealed with a durable cover and inside features grease-lubricated, forged steel sprockets and a heavy-duty chain, designed to match your auger’s capacity

Driveshaft and Bearings
Driveshaft and bearings are constructed of durable oil-impregnated hardwood and can be easily replaced without disassembling the driveshaft

Specifications

TROUGH GAUGE 12 GA
TROUGH CONNECTORS ¼" Flange
MAIN FLIGHTING 10" OD x 7 GA stretched + welded
INTAKE FLIGHTING 10" OD x 7 GA welded with Wear Edge Technology™
FLIGHTING SHAFT 2" OD x 0.120" Wall tubing
DRIVESHAFT 1 - ½" OD x 10 GA tubing
DRIVESHAFT BEARINGS 1 - ½" Oil impregnated hardwood bearings
TRACK High yield 11 GA roll formed
TRACK SHOE 2 - ¾" Steel roller
UNDERCARRIAGE 3" Square tubing
AXLES 2 - ½" Square tubing
HUB & WHEELS 4 Bolt agricultural type hubs, 15" wheel
LIFT CABLE ¼" Aircraft type galvanized steel cable
TIRES 15 Agricultural tires
TOP DRIVE #80 Roller chain & hardened steel sprockets
TOP DRIVE BEARINGS 1 - ¼" Pillow block
WINCH Reduction gear with automotive brake
GEARBOX Formed steel gears with tapered roller bearings
WHEEL TREAD 96"
GAS HORSEPOWER (HP) 37 - 38
CAPACITY 7,000 - 9,000 BPH
