3400/3500 Min-Till Rotary Hoe

3500 Folding Min-Till

PRINT

Overview:

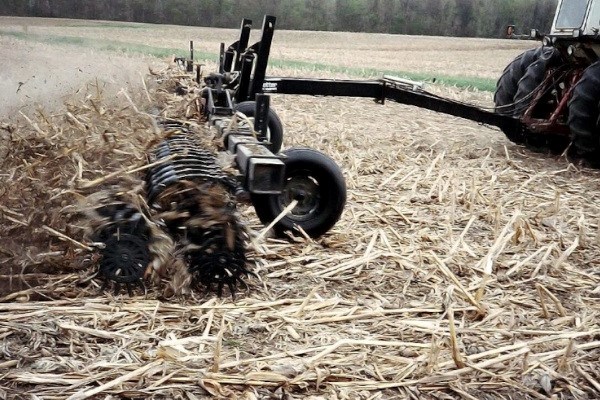

The 3400/3500 Min-Till Rotary Hoe has 13" of additional stagger, making it an ideal fit for higher-residue operations. It is the insurance policy that saves emerging plants as the spoon-bill wheels break open soil crust. Extended distance between the front and rear wheels provides excellent residue flow-through. The Min-Till Rotary Hoe also knocks out weeds without the use of herbicides, aerates wet residue before planting, and helps prevent blowing sand. It is designed for no-till and min-till farming operations with heavier residue conditions.
Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

  • Short- and long-cast arms stagger wheels 21" to facilitate residue flow
  • Wheels spaced on approximately 3 1/4" centers across width of machine
  • Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
  • Very fuel-efficient, with low horsepower requirements; can be operated at speeds of 7-10 mph
  • Available with a wide array of options to fit the needs of your operation (gauge wheels, helper springs, trash guards, and rear parking stand for folding models; see options tab above for details)
  • Rigid (3400 model) available in 12', 15', 21', 28', 30', and 34' widths
  • 180° flat-folding (3500 model) available in 25', 28', 30', 34', 41', 46', and 60' widths
  • Breaks up crusted soil to improve emergence
  • Mechanically rips out young weeds
  • Aerates and fluffs soil around growing plants
  • Incorporates herbicides and small seeds in one fast pass

Specifications

  • Hitch: Mounted three-point category II/III
  • Hoe wheels: 21" diameter hoe wheels equipped with sealed gothic arch ball bearing
  • Riveted wheel assembly: 16 forged, self-sharpening, spoon-bill teeth
  • Down pressure: 18 lbs. with standard springs
  • Cylinders: 3000 psi with hoses on folding models
  • Safety features: SMV emblem, reflectors, light kit
  • Convenience features: Operator shield and parking stands





3500 Folding Min-Till

Model

Toolbar Dimensions

Gang
Sections

Working
Width

Transport
Width

Row
Configuration

Quantity of
Hoe Wheels

Weight
(lbs.)

3525

Center: 7" x 7" x 1/4" x  174"

Wings: 7" x 7" x 1/4" x 63"

4

25'-0"

14'-10"

8R36

86

4,056

3528

Center:  7" x 7" x 1/4" x 167"

Wings: 7" x 7" x 1/4" x 84"

8

28'-0"

14'-3"

8R40, 16R20

96

4,280

3530

Center: 7" x 7" x 1/4" x 181"

Wings: 7" x 7" x 1/4" x 91"

8

30'-2"

15'-5"

12R30, 12R28, 16R22

104

4,621

3534

Center: 7" x 7" x 1/4" x 209"

Wings: 7" x 7" x 1/4" x 98"

8

33'-10"

17'-9"

10R40, 14R28, 18R22

116

5,566

3541

Center: 7" x 7" x 3/8" x 245"

Wings: 7" x 7" x 1/4" x 123"

9

40'-10"

20'-9"

12R40, 16R30, 24R20

140

6,117

3546

Center: 7" x 7" x 3/8" x 303"

Wings: 7" x 7" x 1/4" x 123"

9

45'-10"

25'-9"

14R36, 18R30, 24R22

158

6,657
