3400/3500 Standard Rotary Hoe

3500 Folding

PRINT

Overview:

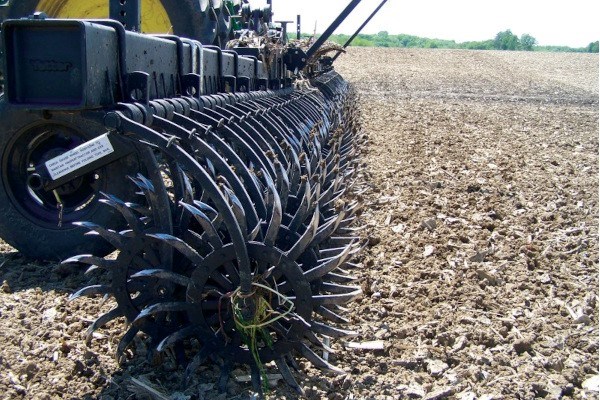

The Yetter 3400/3500 Standard Rotary Hoe has rescued many crops since its introduction. It is the insurance policy that saves emerging plants as the spoon-bill wheels break open soil crust. The Standard Rotary Hoe is used to take out weeds without the use of herbicides, aerate wet residue before planting, and help prevent blowing sand. It is designed for conventional and min-till farming operations.
Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

  • Short- and long-cast arms stagger wheels 7" to facilitate residue flow
  • Wheels spaced on approximately 3 1/4" centers across width of machine
  • Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
  • Low horsepower requirements with operating speeds of 7-10 mph
  • Available with a wide array of options to fit the needs of your operation (gauge wheels, helper springs, trash guards, min-till conversion, and rear parking stand for folding models; see options tab above for details)
  • Widest models (see model details) feature double 7" x 7" toolbar design for added strength
  • Rigid (3400 model) available in 12', 15', 21', 28', 30', and 34' widths
  • 180° flat-folding (3500 model) available in 25', 28', 30', 34', 41', 46', 54', and 60' widths
  • Breaks up crusted soil to improve emergence
  • Mechanically rips out young weeds
  • Aerates and fluffs soil around growing plants
  • Incorporates herbicides and small seeds in one fast pass

Specifications

3500 Folding

Model

Toolbar Dimensions

Gang
Sections

Working
Width

Transport
Width

Row
Configuration

Quantity of
Hoe Wheels

Weight
(lbs.)

3525

Center: 7" x 7" x 1/4" x 174"

Wings: 7" x 7" x 1/4" x 63"

4

25'-0"

14'-10"

8R36

86

3,499

3528

Center: 7" x 7" x 1/4" x 167"

Wings: 7" x 7" x 1/4" x 84"

8

28'-0"

14'-3"

8R40, 16R20

96

3,640

3530

Center: 7" x 7" x 1/4" x 181"

Wings: 7" x 7" x 1/4" x 91"

8

30'-2"

15'-5"

12R30, 12R28, 16R22

104

3,904

3534

Center: 7" x 7" x 1/4" x 209"

Wings: 7" x 7" x 1/4" x 98"

8

33'-10"

17'-9"

10R40, 14R28, 18R22

116

4,799

3541

Center: 7" x 7" x 3/8" x 245"

Wings: 7" x 7" x 1/4" x 123"

9

40'-10"

20'-9"

12R40, 16R30, 24R20

140

5,269

3546

Center: 7" x 7" x 3/8" x 303"

Wings: 7" x 7" x 1/4" x 123"

9

45'-10"

25'-9"

14R36, 18R30, 24R22

158

5,732

3554

Center: 7" x 7" x 1/2" x 334"

Wings: 7" x 7" x 3/8" x 156"

12

54'-2"

29'-0"

16R40, 18R36, 32R20

186

8,707

3560

Center: 7" x 7" x 1/2" x 386"

Wings: 7" x 7" x 3/8" x 170"

13

60'-6"

32'-5"

20R36, 24R30,26R28

208

10,299
