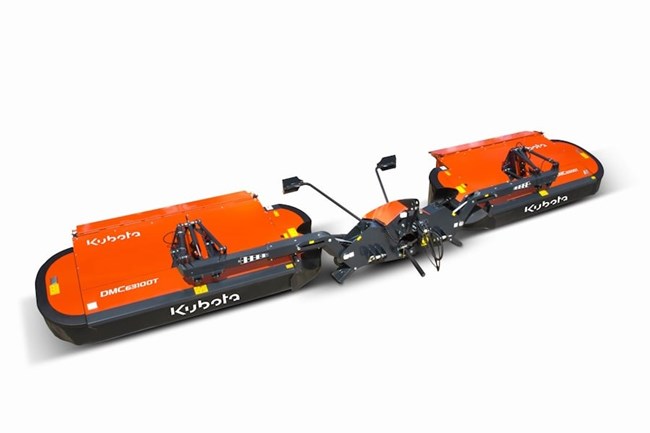

DMC63100T
Price: $109,590.00
Overview:
The DMC63100T has been designed for even more productivity and to handle tougher conditions than ever. The QuattroLink suspension system provides constant ground pressure and handles any obstacle with ease, no matter how uneven the field may be. A cutting width of up to 33”6’ gives the DMC63100T the range you need to make short work of your cutting, maximizing overlap, ensuring the finest cut, and the SemiSwing Tine conditioner minimizes wear and tear.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
QuattroLink Suspension
Designed like a racecar and developed for better tracking, fast speed and instant ground adaptation. Four arm pulled design for accurate tracking. This allows it to pivot 30 degrees up and down in a transverse direction. It can vertically move up 15.7†and down 11.8â€.
Flexible suspension
This allows it to pivot 30 degrees up and down in a transverse direction. It can vertically move up 15.7 inches and down 11.8 inches. It also has a 28 inches of vertical working range.
Hydraulic setting of ground pressure
It also provides constant ground pressure through hydraulics from the seat of the tractor and an easy to read pressure gauge. Ground pressure is constant even when the mowing unit is moving up and down due to hydraulic ground pressure and the geometry of QuattroLink. Constant ground pressure even when adjusting the hydraulic SideShift carrying VarioArm.
NonStop BreakAway
Integrated into the suspension system. When an object is encountered, the cutting unit will move up and back, automatically returning to its original working position so there is no need to stop meaning no time lost. Protection across full working width with no limiting factors.
400mm hydraulic adjustment of overlap
Headland Management
Automatic headland control that allows lifting and lowering with a predefined time or distance relay. To Minimize lifting and lowering time on headland, lifting height can be set electronically, depending on crop and swath size. The carrying arm can be lifted to 10 degrees by cylinder during headland turns resulting in minimum ground clearance of 20 inches.
ISOBUS Control
Automatic headland control. Adjustment of overlap. Set ground pressure of ground units. Side shift function control. Individual lift of mowing units. Optional hydraulic lift of side guards.
Dual adjustment of conditioner hood
Both front and rear end can be adjusted.
The flip over spreading hood allows for swath formation or wide spreading. Now tools are required making it fast and simple. Swath plates automatically expand when being slid inwards to support efficient and accurate swathing.
Vertical transport solution
Even weight distribution on both rear tires of the tractor. Telescoping frame arm is moved to the lowest overlap position to reach transport height. Outer side guard available with hydraulic folding mechanism. Sure-footed, integrated parking food for vertical storage requiring minimum space for storage.
Specifications
| Drawbar | - | |
|---|---|---|
| Conditioner | Chevron Roller | |
| Working Width ft. (m) | 32' - 33' 6" | |
| Transport Width ft. (m) | 9' 6" | |
| Weight lbs. (kg) | 6798 | |
| Cutting Height in. | 1.25” - 3.25” | |
| Hitch (CAT) | Cat III 3 pt. | |
| PTO RPM | 1000 | |
| Minimum PTO Horsepower Required HP/KW | 200 | |
| Number of Disc and Knives | 20/60 | |
| Remotes | - | |
| Cutterbar Operating Angle | - | |
| Cond. Rotor Speed | 1000/700 | |
| Tires | - | |
| Wide Spreading Kit | - | |
| High Skids in. | - | |
| Throwing Wings for Diff. Crops | - | |
| Lighting Kit | - | |
| Alternative Cond. Speed Kit | - |
