Stihl STIHL ROLLOMATIC® ES Light 3/8"

Double tap to zoom

Guide Bars

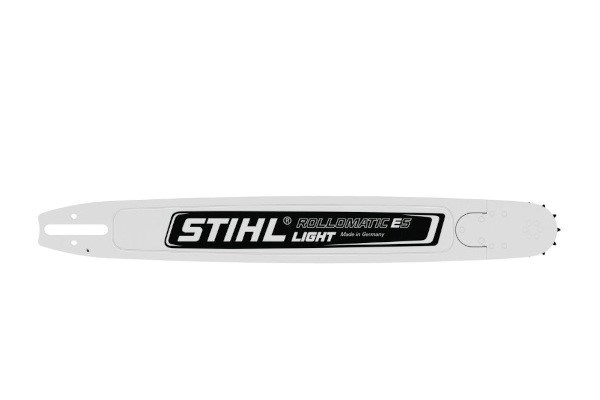

STIHL ROLLOMATIC® ES Light 3/8"

Overview:

A guide bar that has 30% less weight in comparison with STIHL ROLLOMATIC® ES Super guide bars.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The STIHL ROLLOMATIC® ES Light guide bar has up to 30% less weight in comparison with STIHL ROLLOMATIC® E Super guide bars. In order to reduce weight, long channels are milled out of the center of a solid guide bar, then a thin steel plate of the same steel is welded over the channels using a special laser welding process. The reduced weight helps decrease operator fatigue, especially on longer bars. A replaceable sprocket nose assembly is also incorporated in the nose of the bar that carries the saw chain from the top to the bottom of the bar. This not only reduces wear, but also enables the bar nose to be made considerably narrower. All STIHL ROLLOMATIC® bars designed with a narrow nose help reduce kickback tendencies. And the sprocket nose assembly can be replaced several times before the whole bar is due for replacement, increasing the guide bar’s service life.

Applications: For high-performance woodcutting with larger displacement professional STIHL chainsaws.

STIHL recommends using low-kickback, green-labeled chain and green-labeled reduced-kickback bars on all powerheads.

Note: The actual listed guide bar length can vary from the effective cutting length depending upon which powerhead it is installed.

Specifications

Sprocket nose pitch	9,32mm/3/8"
Groove width	1,6mm/.063" / 1,3mm/.050"
Bar tail	3003
No. of teeth, sprocket nose	11
Bar length	50cm/20" / 63cm/25" / 71cm/28" / 80cm/32" / 90cm/36"
Bar weight	0.916 / 1.168 / 1.263 / 1.489 / 1.643 / 0.940 / 1.209 / 1.308 / 1.542 / 1.701 kg
